PT.MALMASS MITRA TEKNIK PROJECT

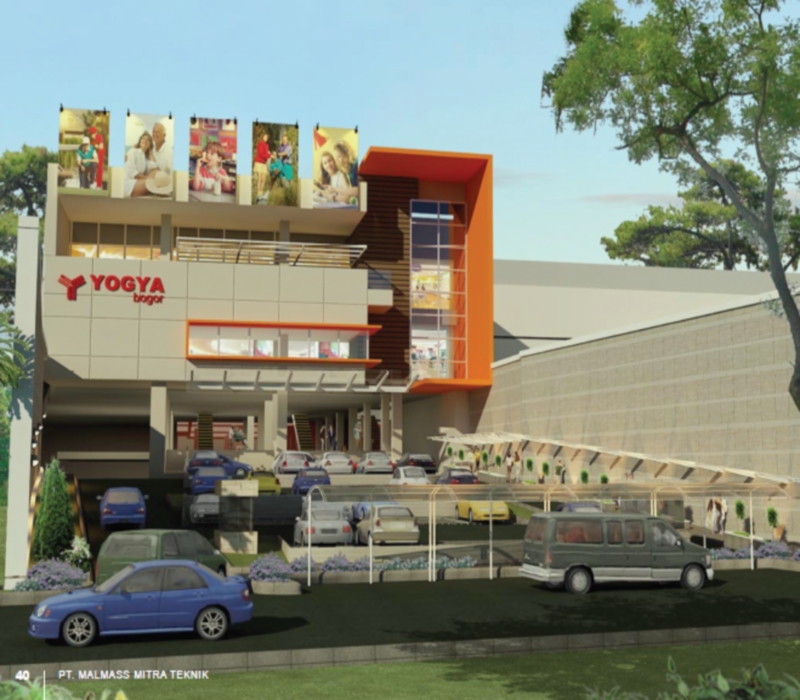

YOGYA DEPT. STORE – BOGOR - WEST JAVA
Location: Jalan Jenderal Sudirman – Bogor, West Java
PROJECT DATA:
Owner: PT. AKUR PRATAMA
Architect: PT. Cita Cipta
Building Area: ± 32.200 m²
Total Building: 1 Tower
Total Floor: 4 Storey
Function Building: Commercial Area (Mall)
Year: 2008
MEP SYSTEM:
- ACMV System: Central Air Cooled Chiller, 2 x 400 TR, AHU, FCU and Mechanical Ventilation System
Plumbing System:
- Clean water, Waste water, Ventilation and Rain water, etc
- GWT cap.500 m³ (Source; PDAM and Deepwell),
- STP cap.350 m³/day, Aeration system
Fire Fighting System:
- Hydrant and Sprinkler System
- Electric Hydrant Pump (EHP) 750 us gpm, head 150 m’
- Electrical Characteristict; 380 Volt, 3 Ph, 50 Hz
Lift/Elevator System:
- 4 Unit Lift Passengers, 15 persons/1500 kg, 60 mpm
- 3 Unit Escalators, 1000 persons per hour
Electrical System:
- Electrical Load; PLN 1.358 kVA (Source; PLN & Genset)
- Transformers Oil type, 1 x 1.600 kVA, TM 20 kV – 380 Volt
- Diesel Generator Set; 2 x 800 kVA, Synchronized system, Prime power type
Telecommunication System: PABX, 100 Direct Lines – 1000 E=[xtention, to PT. Telkom
Fire Alarm System: Semi Addressable system, 2 Loopss – 450 points
Sound System: Public Address and Evacuation System
Security System: CCTV System
Ancillary: Building Automation System (BAS)
