PT.MALMASS MITRA TEKNIK PROJECT

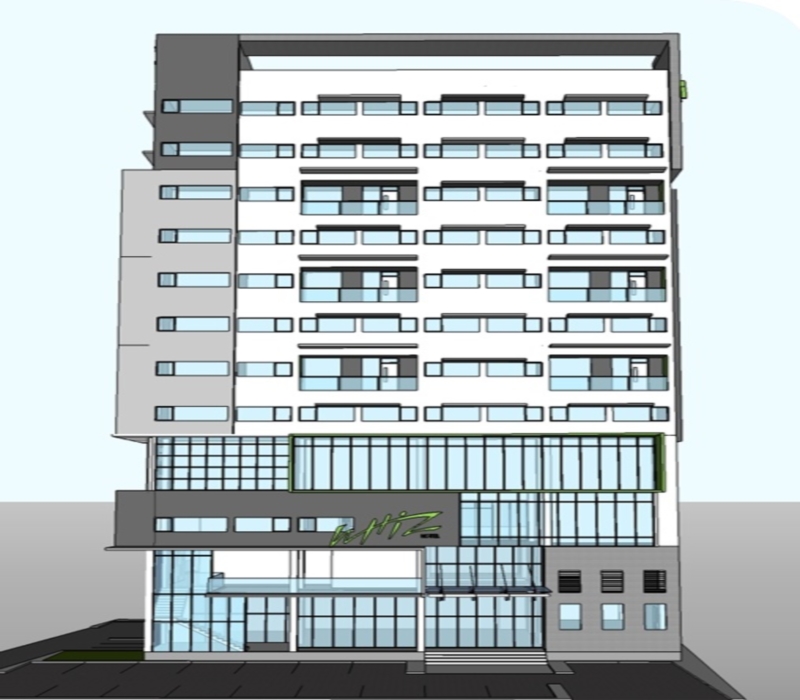

WHIZ HOTEL BOGOR

Location : Jl. Raya Pajajaran - Bogor

Project Data :
Owner : PT. Dharmo Grande
Architect : Dezain Team
Site Area : 1460 m2
Building Area : 4.364 m2
Total Building : 1 tower, 138 room
Total Floor :  8 floor + 1 Basement
Function Building : Hotel
Year : 2012

MEP System :
ACMV System : Split Wall Mounted

Plumbing System :
- Clean Water,Waste Water, Ventilation and Rain Water. Etc
- Ground Water Tank (GWT) cap. 170 m3 (Source, PDAM and Deep Well)
- Top Reservoir cap. 20 m3
- STP cap. 65 m3/day, Extended aeration System

Fire Fighting System :
- Fire Hydrant, Sprinkler System and Fire Extinguisher
- Electric Hydrant Pump (EHP) 750 us gpm, head  90 m’
- Electrical Characteristic : 380 Volt, 3 Ph, 50 Hz.
- Lift / Elevator : 10 unit Lift, 1 unit service lift

Electrical System :
- Electrical Load : PLN 605 kVA (Source : PLN & Genset)
- Transformers Oil type : 1 x 630 kVA, 20 kV – 380 Volt
- Diesel Generator Set, 1 x 500 kVA Prime Power.

Lightning System : Non Conventional, Early Streamer Emission – Electrostatic type.
Telecommunication System : PABX 20/200 ext, 40 trunk lines
Fire Alarm System : Semi Addressable System
Sound System : Public Address/ paging dan Back Ground  Music (BGM) dan Car Call
Security System : CCTV System
